OVERVIEW
Product Description

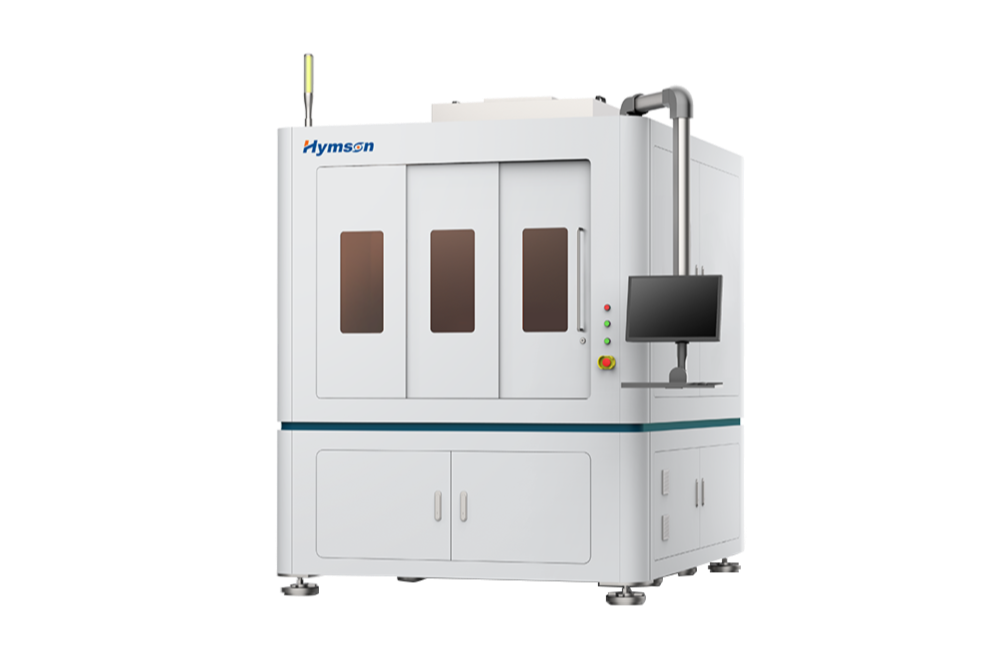

Micro LED Intelligent Versatile Laser Removal Equipment
This equipment is used for the large volume bonding equipment of chips in the Micro LED module manufacturing process.
-

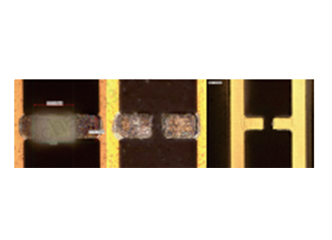

Before laser repair→After laser crystal removal→After laser repai
ADVANTAGE
Product Advantages
-
Being used for Micro LED chip removal, welding and leveling compatible with different sizes of chips and substrates, leveling accuracy up to sub-micron level.
-
The chip glue of Micro LED as small as 5μm is removed by matching micron light spots, without damaging adjacent chips, pads and other layers.
-
Through the self-developed AI integration system, the repair location can be automatically identified to avoid the repair failure caused by misjudgment and ensure product safety.
-
Basic Information
- Equipment Size：长1500mmx宽1900mmx高2137mm
- Maximum Stroke：X Axis 450mm x Y Axis 1050mm
- Equipment Weight：3000Kg
- Processing Type：Laser Stripping
-
Product Performance
- Repeatability Accuracy：±0.75μm
- Position Accuracy：±1μm
- Speed：≤500mm/s
- Z Axis Repeatability Accuracy：±0.75μm
- Z Axis Position Accuracy：±1μm
