OVERVIEW
Product Description

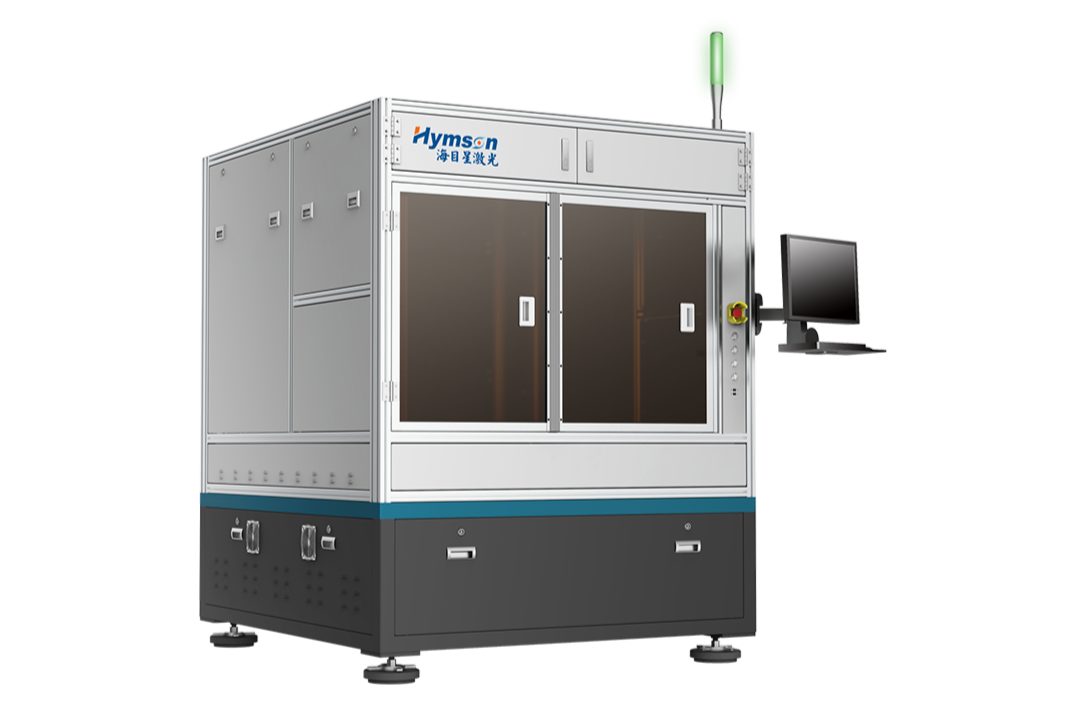

Composite Film Laser Cutting Equipment
The application scenario of this equipment can be applied to the cutting of film, fluid, FPC, and PCB.
-

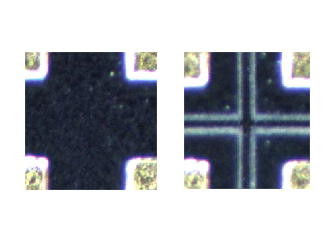

Film cutting -

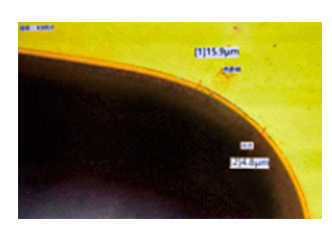

FPC flexible board cutting
ADVANTAGE
Product Advantages
-
High cutting precision.
-
Cutting dimensional accuracy<±5μm.
-
Cutting taper < 5μm.
-
Cutting edge thermal impact < 10 μm.
-
No cutting edges, chipping, hanging corners.
-
High cutting efficiency.
-
Model can be selected: semi-automatic/fully automatic.
-
Basic Information
- Equipment Size：2000mm(L)*2350mm(W)*2100mm(H) (Excluding EFU, auxiliary equipment,indicator lights)
- Maximum Stroke：X Axis 300mm x Y Axis 450mm
- Equipment Weight：2000Kg
- Processing Type ：Film, Colloid, FPC, PCB
-
Product Performance
- Repeatability Accuracy：±1.5μm
- Position Accuracy：±2.0μm
- Speed：≤500mm/s
- Z Axis Repeatability Accuracy：±1.5μm
- Z Axis Position Accuracy：±3μm
