OVERVIEW
Product Description

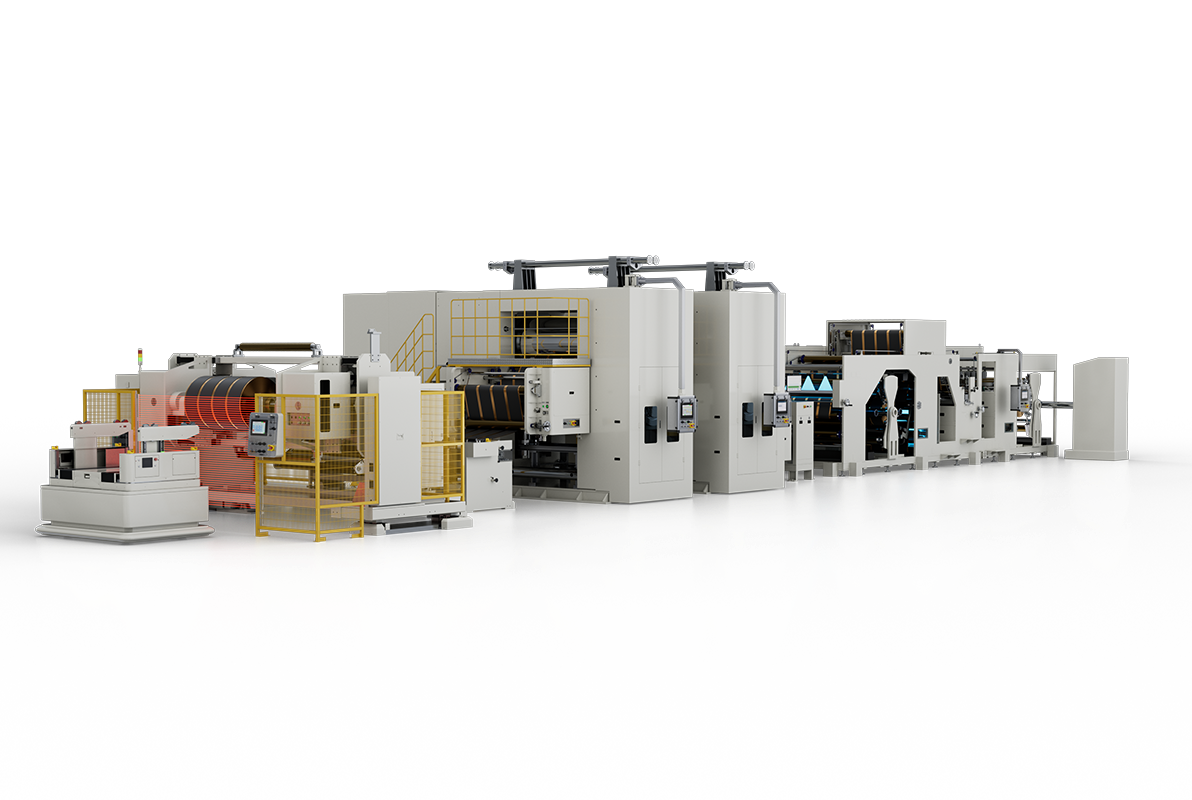

Calendering & Slitting Integrated Machine
The equipment is used for the calendering of coated electrode, it increases the electrode's density and slits the electrode into the required specifications for the next processes.
-

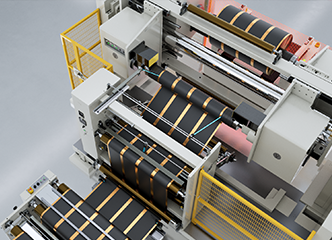

Unwinding module -

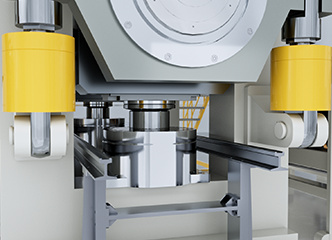

Servo hydraulic module -

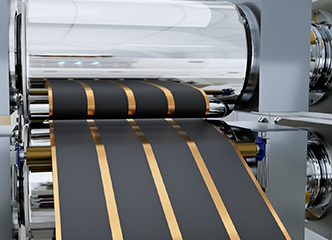

Calendering module
ADVANTAGE
Product Advantages
-
Dual-position rewinding with sliding air shaft
-
Wrinkle removal by stretching unit
-
Calibrate the rollers by stretching bending cylinder
-
Adjust roller distance by mechanical operation and servo cylinder
-
Double-sided dust removal with brush
-
Integrated slitting units with rolling blades
-
Support cold calendering, hot calendering and continuous calendering
-
Basic Information
- Operating speed：100m/min
- Max roller width：1500mm
- Rewinding diameter：Φ700mm
- Roller diameter：Φ800/900mm
-
Product Performance
- Roller distance adjustment accuracy：1um
- Pressing roller run-out：≤3um
- Burr：≤20um
- Malfunction：≤2%
