Product Description
Micro LED Laser Mass Transfer Machine
Mass transfer is the key technology for Micro LED processing. Among them, laser-assisted transfer technology can simultaneously meet the requirements of high yield, accuracy, and speed under appropriate process parameters, making it one of the most promising technical solutions for Micro LED mass transfer. This emachine is applied to Micro LED laser mass transfer and repair processes.Through self-developed optical system and control system, it can achieve automatic and selective transfer of RGB chips with any size and pitch.
-

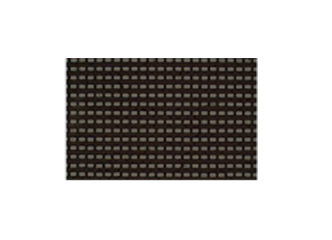

LOGO pattern by Micro LED chips -

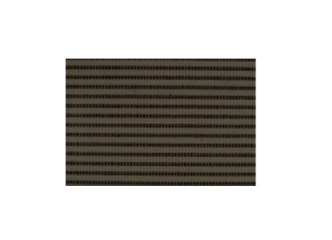

RGB Transfer
ADVANTAGE
Product Advantages
-
This machine has automatic splicing and re-pitch function, which can transfer one or three color Micro led chip arrays of any size and pitch to target substrate.
-
Simultaneously compatible with mass transfer and repair processes, the yield of mass transfer is ≥99.99%, and the yield after repair is ≥99.99%.
-
The maximum size of the laser transfer product can reach 12.7inch, and the laser transfer accuracy is ≤±1.5μm, the laser transfer angle is ≤±1°.
-
Automatic transfer of RGB chips.
-
Basic Information
- Size：Long×Width×High：1650mm x 2300mm x 2420mm
- Axis distance(Max)：X-Axis 400mm × Y-Axis 450 mm
- Process Size(Max)：150*250mm
- Quality：3800Kg
- Process Product ：Micro LED
-
Product Performance
- Tact time：35kk
- Substrate size：＜150*250mm
- Chip wafer size(Min)：10μm
- Mass Transfer accuracy：±1um
- Mass Transfer Yield：99.999%
-
Model classification
- HR-WPUR22
