Product Description

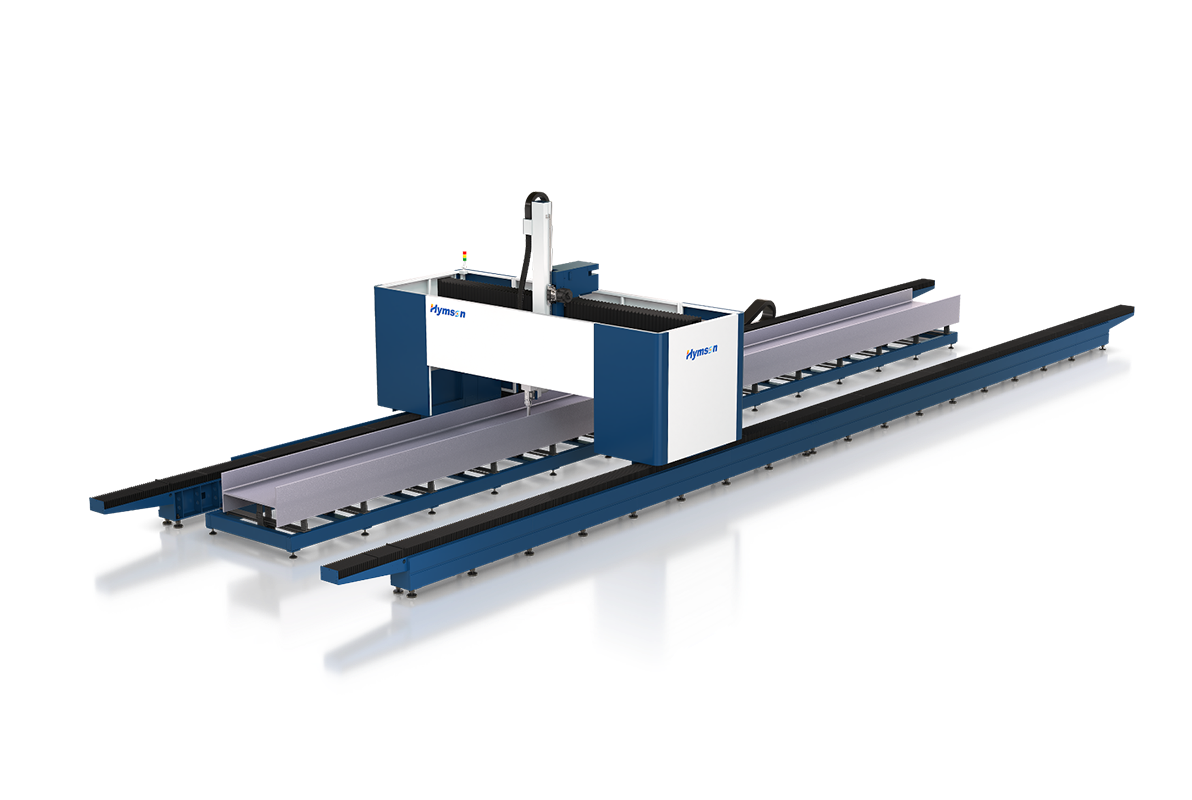

HP30035 SERIES SPECIAL PROFILE CNC LASER METAL CUTTING MACHINE
Hymson special cutting machine HP30035 for profiles is specially produced for steel structures, such as I-beam, HW, HM and HN types of steel, the machine has integrated cutting, punching and grooving functions in one.
ADVANTAGE
Product Advantages
-

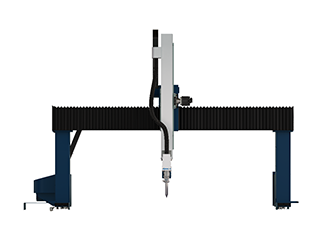

The machine body is welded with high-strength plates, to ensure that the machine tool has stable structure and it can stably operate for a long time.
-
Processing of the machine body adopts high-temperature treatment to maximum eliminate internal stress generated by the material and welding, and ensure high-strength, high-accuracy, and high tolerance.
-

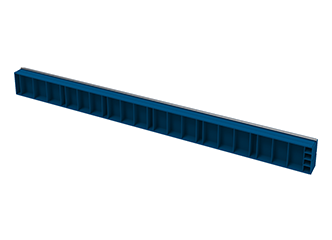

The beam is made of high-intensity steel, which can reduce stress deformation, and ensure stable operation.
-

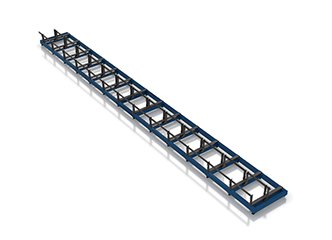

This part adopts high-intensity negative face adjustable support structure, which can be used to cut the material with the width of 200-3000mm.
-
The bottom support can be easily adjusted, replaced, the maintenance cost is low.
-
Basic Information
- Dimensions of the Machine：35m x 5m x 4.5m
- Processing Type：H-steel, U-steel, angle steel and flat plate etc.
- Nesting Software for Profile Steel：Friendness nesting software for profile steel; Compatible with 3D software, such as Tekla, SW, and CAD etc;
- CNC System：FSCUT
-
Product Performance
- Sectional Dimensions of the Profiles to be Processed：Web H≤1200mm；Flange B≤600mm；Length L≤12000mm
- Cutting Thickness（Carbon Steel O2）：Vertical cutting MAX：20mm; groove cutting MAX:30mm
- Groove Cutting Range：0-45° groove
- X，Y Axles Maximum Positioning Speed：40m/min
- X,Y Axles Maximum Acceleration：0.6g
- X, Y Axles Positioning Accuracy：0.05mm/10m（≤10m时)，0.1mm/全长
-
Model classification
- Model classification：HP30035
