OVERVIEW
Product Description

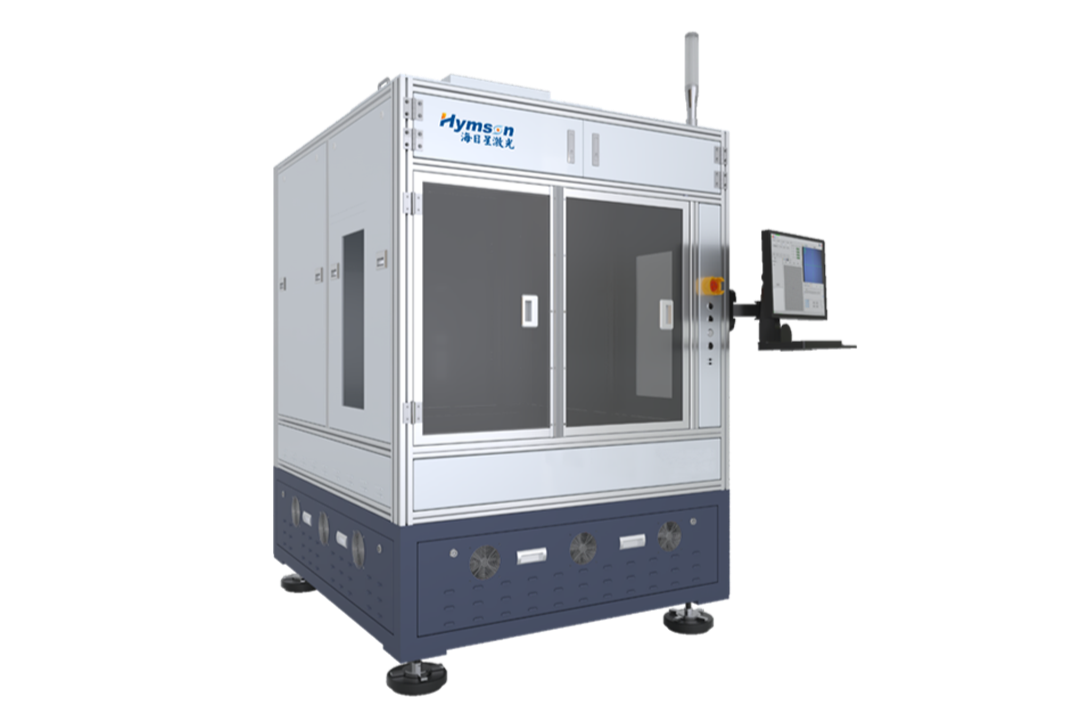

Mini LED Laser Soldering Repairing Equipment
This equipment is utilized in the Mini LED process rework to rebond repaired chips.
-

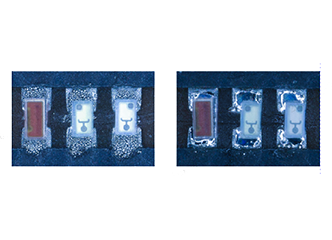

Industry Application
ADVANTAGE
Product Advantages
-
Coaxial visual positioning system, high-precision positioning chip position, real-time monitoring of product status and effect in the process of welding repair.
-
Real-time monitoring of welding temperature, closed-loop temperature control, to ensure welding quality. AOI system is optional to confirm the success rate of welding.
-
The zoom laser system can be used, proportionally scaling to accommodate different chip sizes.
-
Basic Information
- Equipment Size：1384mm(L)*1674mm(W)*1902mm(H)
- Maximum Stroke：X Axis 450mm x Y Axis 600mm
- Equipment Weight：2300Kg
- Processing Type：Laser welding repair
-
Product Performance
- Repeatability Accuracy：±1μm
- Position Accuracy：±3μm
- Speed：≤500mm/s
- Z Axis Repeatability Accuracy：±1μm
- Z Axis Position Accuracy：±3μm
