Product Description

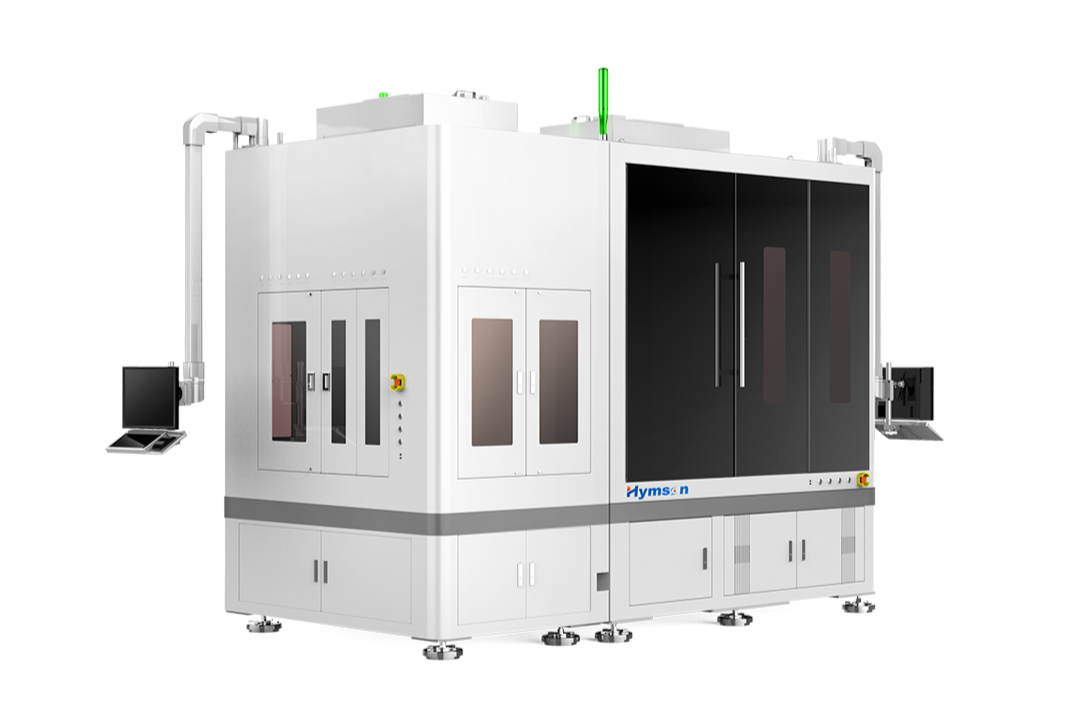

Micro LED Mass Welding Equipment
This equipment is used for the large volume bonding equipment of chips in the Micro LED module manufacturing process.
-

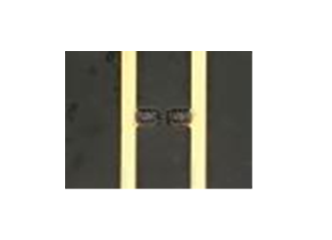

Before welding -

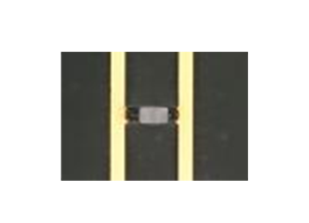

After welding
ADVANTAGE
Product Advantages
-
Efficient LED chip massive welding, yield up to 99.99% or more.
-
Large area high-speed welding, compatible with larger substrate size, leading industry production efficiency.
-
Closed loop temperature control, to ensure the stability of bonding temperature.
-
High precision alignment leveling system, with leading vision algorithm, to ensure the high reliability of welding process.
-
Basic Information
- Equipment Size：3200mm(L)*2000mm(W)*2500mm(H)
- Maximum Stroke：X Axis 600mm x Y Axis 500mm
- Equipment Weight：6600Kg
- Processing Type ：Laser Soldering
-
Product Performance
- Repeatability Accuracy ：±1μm
- Position Accuracy ：±2μm
- Speed ： ≤600mm/s
- Z Axis Repeatability Accuracy ：±1μm
- Z Axis Position Accuracy：±1.5μm
