Product Description
Prismatic Cell Notching & Winding Integrated Machine
The equipment is used for the tab notching and winding process of LIB battery cell manufacturing.
-

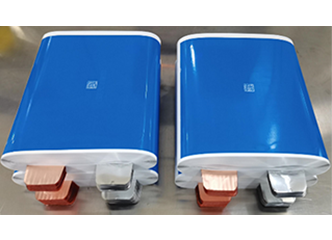

Prismatic Winding Cell
ADVANTAGE
Product Advantages
-

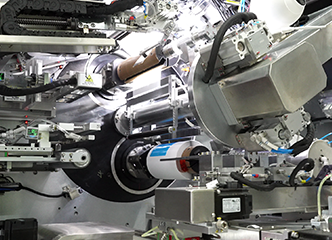

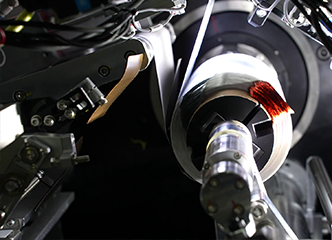

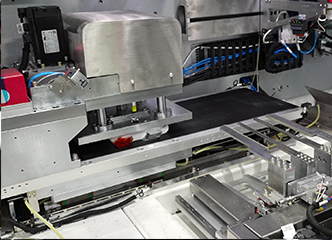

Winding needle is directly driven by DD motor with speed fluctuation ≤0.2%
-
Four grades of electrode position correction, forming closed loop control with CCD
-
High performance moving controller and advanced technology from Omron
-
Track notching and cross-cutting for incoming electrode
-
Multiple dust removal system with high efficiency
-
Tension control adopts high-response voice coil actuators (VCA), forming a closed loop with high-accuracy inspection sensor
-
Basic Information
- Efficiency:≥7PPM (L≤9m/JR)
- Compatible cell width:100-320mm
- Compatible cell height:70-250mm
- Electrode winding diameter:≤Փ750mm
- Separator winding diameter:≤Փ750mm
-
Product Performance
- Tension fluctuation:≤±4%
- Alignment:≤±0.3mm
- Tab mismatch:≤±3mm
- HAZ(Al):<100um
- HAZ(Cu):<150um
- Burr:<15um
- Size accuracy:±0.2mm
